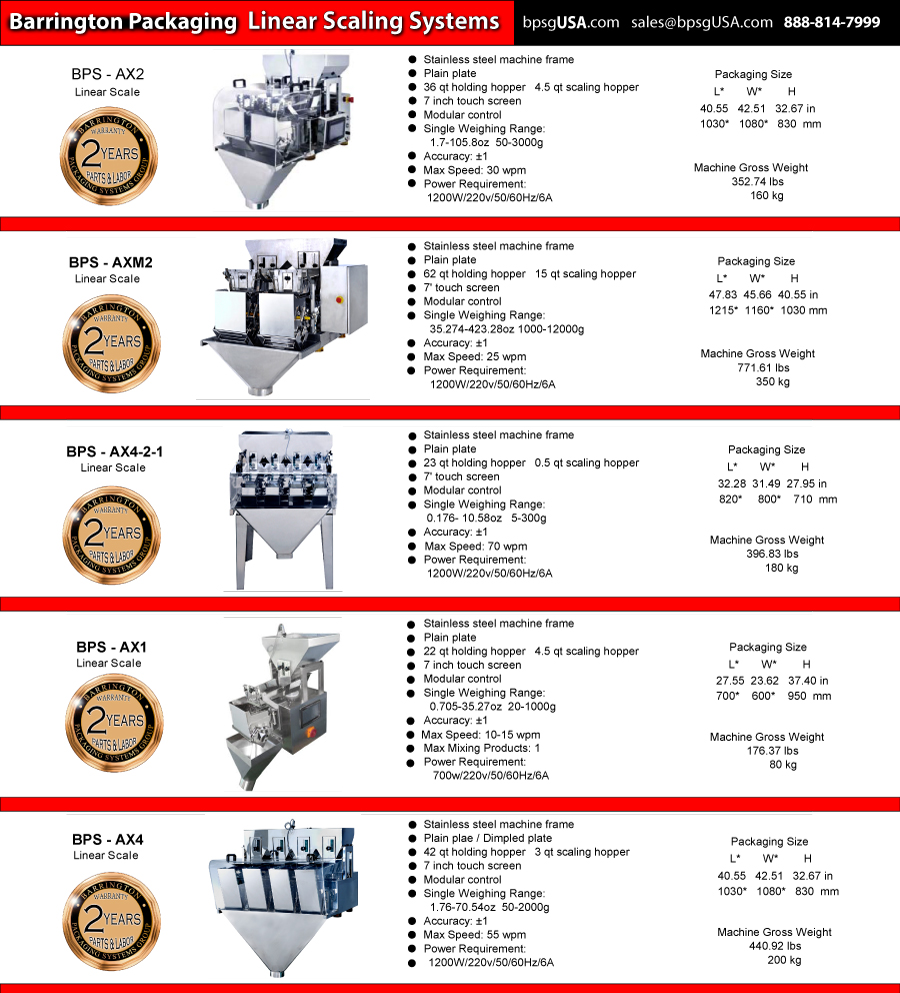

Barrington Packaging Linear Scale Systems - Complete Technical Reference

All Barrington Packaging Linear Scale Systems feature precision engineering with stainless steel construction, modular controls, and user-friendly touch screen interfaces. Each system is designed for specific weight ranges and production speeds to match your exact packaging requirements.

BPS-AX2 Linear Scale

Technical Specifications:

• Machine Frame: Stainless steel construction
• Base: Plain plate design
• Hopper Capacity: 36 qt holding hopper, 4.5 qt scaling hopper
• Display: 7 inch touch screen
• Control System: Modular control
• Weighing Range: 1.7-105.8oz (50-3000g)
• Accuracy: ±1
• Maximum Speed: 30 weighments per minute (wpm)
• Power Requirements: 1200W/220v/50/60Hz/6A
• Packaging Size Capacity:
  • Length: 40.55"
  • Width: 42.51"
  • Height: 32.67"
  • Metric: 1030mm x 1080mm x 830mm
• Machine Gross Weight: 352.74 lbs (160 kg)

Warranty: All BPS-AX2 systems include Barrington's comprehensive 2-year parts and labor warranty.

BPS-AXM2 Linear Scale

Technical Specifications:

• Machine Frame: Stainless steel construction
• Base: Plain plate design
• Hopper Capacity: 62 qt holding hopper, 15 qt scaling hopper
• Display: 7 inch touch screen
• Control System: Modular control
• Weighing Range: 35.274-423.28oz (1000-12000g)
• Accuracy: ±1
• Maximum Speed: 25 weighments per minute (wpm)
• Power Requirements: 1200W/220v/50/60Hz/6A
• Packaging Size Capacity:
  • Length: 47.83"
  • Width: 45.66"
  • Height: 40.55"
  • Metric: 1215mm x 1160mm x 1030mm
• Machine Gross Weight: 771.61 lbs (350 kg)

Warranty: All BPS-AXM2 systems include Barrington's comprehensive 2-year parts and labor warranty.

BPS-AX4-2-1 Linear Scale

Technical Specifications:

• Machine Frame: Stainless steel construction
• Base: Plain plate design
• Hopper Capacity: 23 qt holding hopper, 0.5 qt scaling hopper
• Display: 7 inch touch screen
• Control System: Modular control
• Weighing Range: 0.176-10.58oz (5-300g)
• Accuracy: ±1
• Maximum Speed: 70 weighments per minute (wpm)
• Power Requirements: 1200W/220v/50/60Hz/6A
• Packaging Size Capacity:
  • Length: 32.28"
  • Width: 31.49"
  • Height: 27.95"
  • Metric: 820mm x 800mm x 710mm
• Machine Gross Weight: 396.83 lbs (180 kg)

Warranty: All BPS-AX4-2-1 systems include Barrington's comprehensive 2-year parts and labor warranty.

BPS-AX1 Linear Scale

Technical Specifications:

• Machine Frame: Stainless steel construction
• Base: Plain plate design
• Hopper Capacity: 22 qt holding hopper, 4.5 qt scaling hopper
• Display: 7 inch touch screen
• Control System: Modular control
• Weighing Range: 0.705-35.27oz (20-1000g)
• Accuracy: ±1
• Maximum Speed: 10-15 weighments per minute (wpm)
• Maximum Products: 1
• Power Requirements: 700W/220v/50/60Hz/6A
• Packaging Size Capacity:
  • Length: 27.55"
  • Width: 23.62"
  • Height: 37.40"
  • Metric: 700mm x 600mm x 950mm
• Machine Gross Weight: 176.37 lbs (80 kg)

Warranty: All BPS-AX1 systems include Barrington's comprehensive 2-year parts and labor warranty.

BPS-AX4 Linear Scale

Technical Specifications:

• Machine Frame: Stainless steel construction
• Base: Plain plate/Dimpled plate design
• Hopper Capacity: 42 qt holding hopper, 3 qt scaling hopper
• Display: 7 inch touch screen
• Control System: Modular control
• Weighing Range: 1.76-70.54oz (50-2000g)
• Accuracy: ±1
• Maximum Speed: 55 weighments per minute (wpm)
• Power Requirements: 1200W/220v/50/60Hz/6A
• Packaging Size Capacity:
  • Length: 40.55"
  • Width: 42.51"
  • Height: 32.67"
  • Metric: 1030mm x 1080mm x 830mm
• Machine Gross Weight: 440.92 lbs (200 kg)

Warranty: All BPS-AX4 systems include Barrington's comprehensive 2-year parts and labor warranty.

For technical support, pricing, or to discuss which linear scale system best fits your production needs, contact Barrington Packaging Systems Group at 888-814-7999 or sales@bpsqUSA.com
